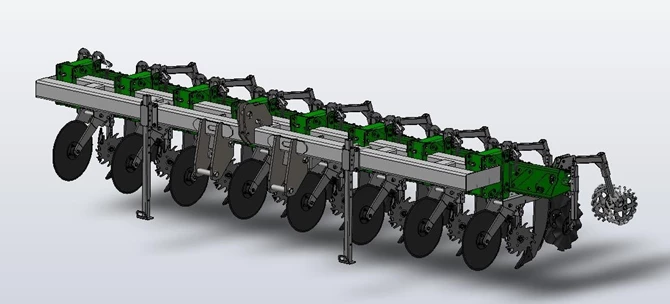

Schlagel 8 Row Rapid Till HD

Product Description

Built to handle rocky and high-residue conditions, the Rapid Till HD—our heavy duty strip till system—lets you till deeper in rough soil. A standard shear bolt or a hydraulic reset is available for taking on especially challenging soil conditions.

Common Wear Parts

Coulters and bearings are standard parts that can be found your local dealership

Pin Adjustable

Adjust and set up your machine to fit your soil conditions and preferences

Adjustable Shank Depths

Running depths range from 6" to 16"

Horsepower Needed

An average of 25 HP per row is recommended, but actual horsepower requirements will vary with options and soil conditions.

Options

• 4 to 16 row machine with 20"- 40" row spacing to accommodate your equipment
• Our planter caddies will carry your Rapid-Till HD and planter all in one machine, creating a true "one-pass" tilling and planting operation.
• Folding bar
• Folding bar with planter caddy mounts
• Planter link arms

Specs

• 24" flat coulter
• Built-in row cleaners
• 3/4" semi-parabolic shank with 6" point
• Two 20" wavy coulters
• 16" dual-wheel packer
