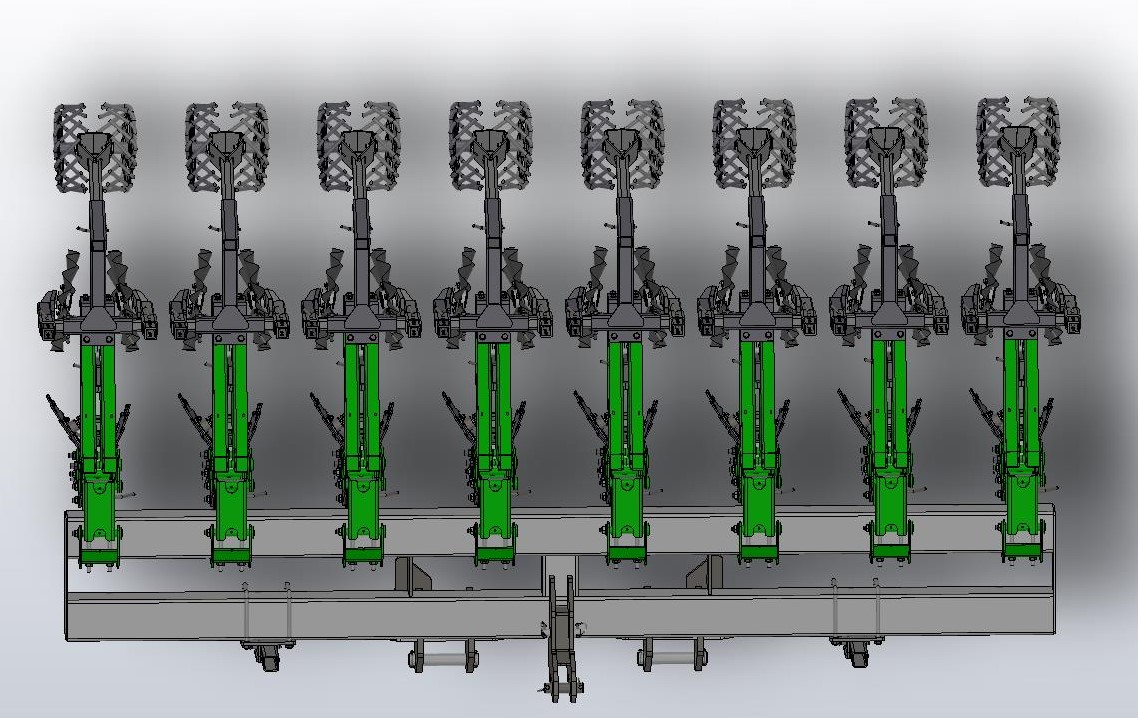

Schlagel 8 Row Rapid Till
RT-5002_1.jpg RT-5002_2.jpg RT-5002_3.jpg

Schlagel 8 Row Rapid Till

Folding
Spacing
  • Item #: Please select from the options to view the item
  • $36,800.00 - $60,000.00 each

Product Description

The Rapid Till is a strip till system that is lightweight, low draft and is able to travel up to 10 m.p.h., allowing you to cover more acres in less time. These machines are perfect for applying fertilizer, and can be attached to your planter to allow for a one-pass planting system.

Common Wear Parts

Coulters and bearings are standard parts that can be found your local dealership

Pin Adjustable

Adjust and set up your machine to fit your soil conditions & preferences

Adjustable Shank Depths

Running depths range from 2" to 11"

Horsepower Needed

Each row unit weighs 350 lb. and, on average, requires 20 HP per row to pull

Options
  • Use optional planter lift assist and link arms to connect a planter and complete a one-pass tilling and planting operation
  • The Strip Freshener Kit allows for strip tilling in the fall and freshening in the spring
  • Folding bar
Specs
  • 20" flat coulter
  • Adjustable row cleaners
  • 3/4" x 4" shank
  • Two 17" wavy coulters
  • 16" dual-wheel light packer

Schlagel provides Schlagel ag parts such as the RT-5002 Schlagel 8 Row Rapid Till.

Product Specs

  • Spacing22", 30", 36", 40"
  • Foldingno, yes
  • Caddy Mountsno
  • Flat Coulters(1) 20"
  • Machine Weight3200, 3600, 3800, 4000, 4800, 5500, 6500
  • Maximum Width14.5', 20', 24', 26'
  • Minimum Width11', 13', 14', 14.5', 20', 24', 26.6
  • Recommended Horsepower150
  • Row CleanersAdjustable
  • Rows8
  • Shank3/4" x 4"
  • Single Row Weight350 lbs
  • Wavy Coulters(2) 17"
